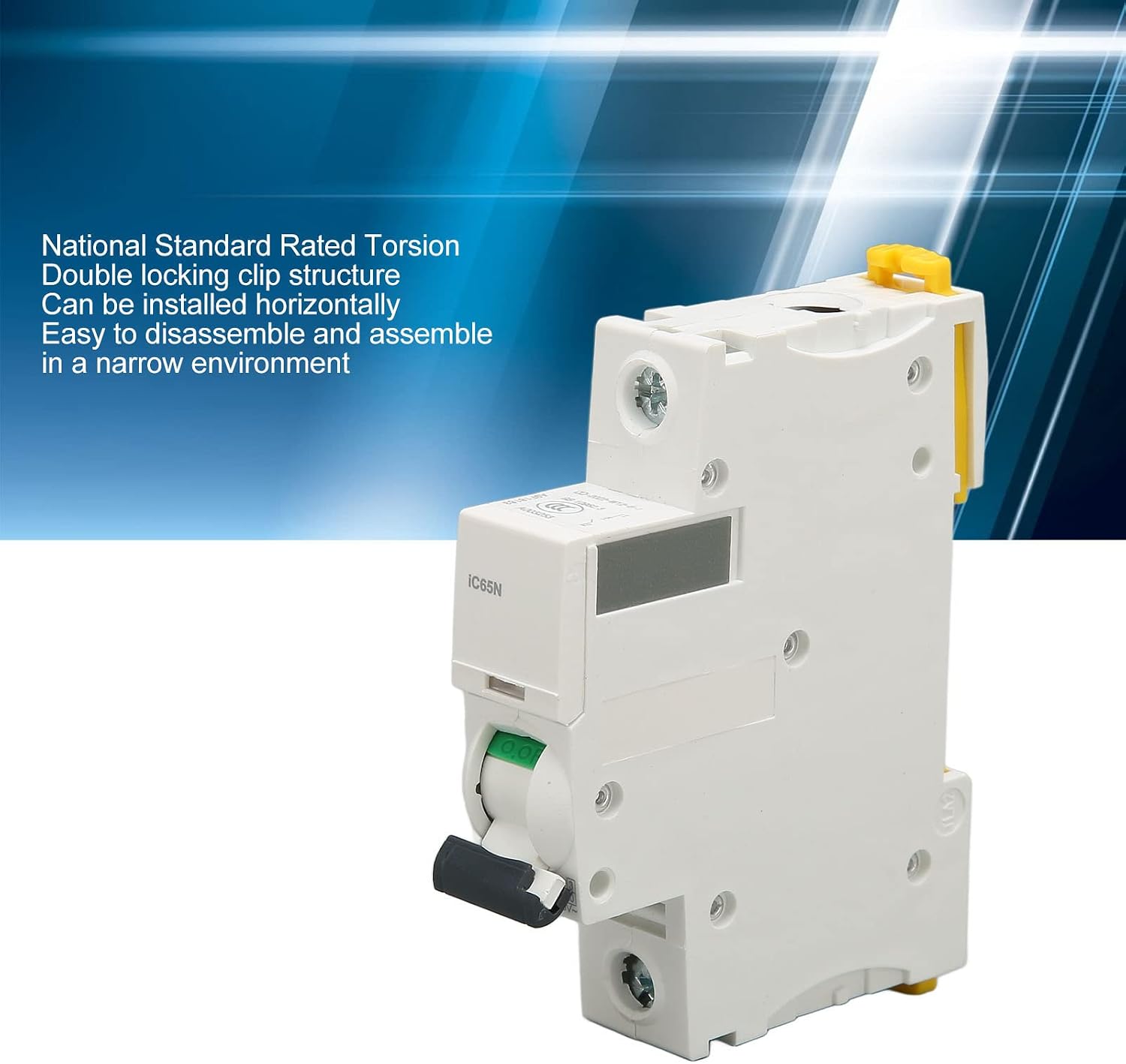

1 Pole Circuit Breaker Leakage Protection Air Switch Replacement with Multi Protection for Commercial Buildings

TSIOHKBSSpecification:Item Type: Residential Circuit BreakerMaterial: PA66Features:Complies with IEC60947-2:Rated Insulation Voltage : 500VAC Impulse Voltage : 6kV Thermal Trip Reference Setting Temperature: 30℃ Use Category: APollution Degree: 3Magnetic Tripping:B Curve: lnC Curve: lnD Curve: lnComplies with IEC60898-1:Current Limiting Class: 3 Single Pole Breaking Capacity : Icn1=IcnOther Parameters:Protection Class Circuit Breaker Body: IP20Installed in the Distribution Box: IP40 Insulation, class ⅡOvervoltage Category : ⅣDamp Heat Resistance : Class 2 Wiring Method: Top in and bottom out, bottom in and top outFunction: Short circuit protection, overload protection, control isolationElectrical Life: 10000 timesMechanical Life: 20000 timesAmbient Temperature: -35℃ to +70℃Storage Ambient Temperature: -40℃ to +85℃Voltage: 230V 400VPackage List:1 x Residential Circuit BreakerNote:Pay attention to the safety of electricity when using, install it under the guidance of professionals.

• WITH RAPID ARC EXTINGUISHING SYSTEM: Circuit breaker has a built in rapid arc extinguishing system, can quickly extinguish the arc and avoid electrical fire, safe and reliable
• WIDE APPLICATION: This breaker is widely used in power distribution and protection in civil, commercial buildings and industrial places
• SHORT CIRCUIT PROTECTION: Circuit breaker features short circuit protection, electromagnetic tripping mechanism stable current interruption, has good safety
• EASY TO INSTALL: With double locking clip structure, circuit breaker can be installed horizontally, easy to disassemble and assemble in a narrow environment
• SAFETY PA66 HOUSING: Circuit breaker is manufactured by excellent nylon Pa66 material, has good flame resistant, sturdy and
